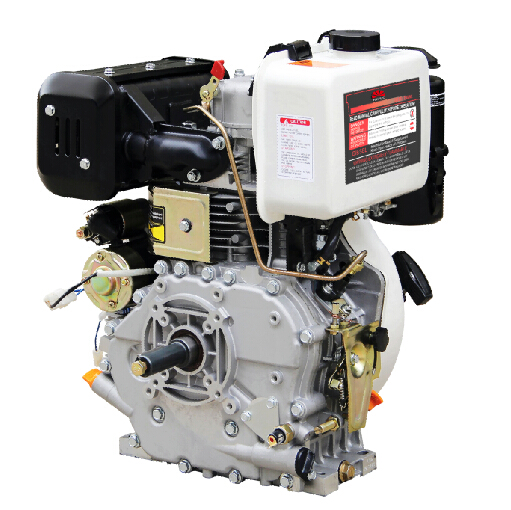

12HP Diesel Engine
- Model: 188FA
- Power: 12HP

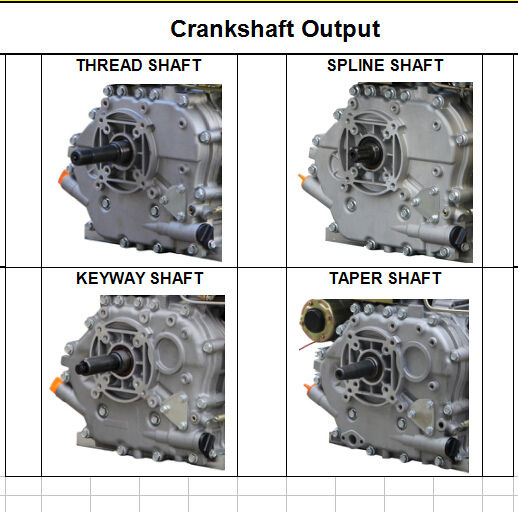

- Product description: ♦ Multi-choice PTO shafts are available. ♦ Recoil manual starter and optional electric starting.
Product introduction
| AIR-COOLED DIESEL ENGINE SERIES | ||
| Model | 188FA | |
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |
| Bore×Stroke(mm) | 88×75 | |
| Displacement capacity(cc) | 456 | |
| Speed(rpm) | 3000/3600 | |
| Output(HP) | 12HP | |
| Fuel Type | 0# or-10# light diesel oil | |
| Fuel oil tank volume(l) | 5.5 | |
| Lubricatiom oil volume(l) | 1.65 | |
| Fuel oil consumption rate(g/kw.h) | 280 | |
| Starting system | Recoil or Electric | |
| Combustion System | Direct Injection | |
| Governor System | All-speed Type, Mechanical Governor | |
| Lube oil system | Pressure splash Type | |
| Lube oil type | SAE10W30( above CD grade ） | |
| PTO rotation direction | It is clockwise as viewing from the flywheel end | |
| Dimension(mm) | 417×470×494 | |
| Net weight(kg) | 45 | |
| 20FT QTY | 240 | |
