WeiChai Series Diesel Generator
- Model: FT-K8 TO FT-K160

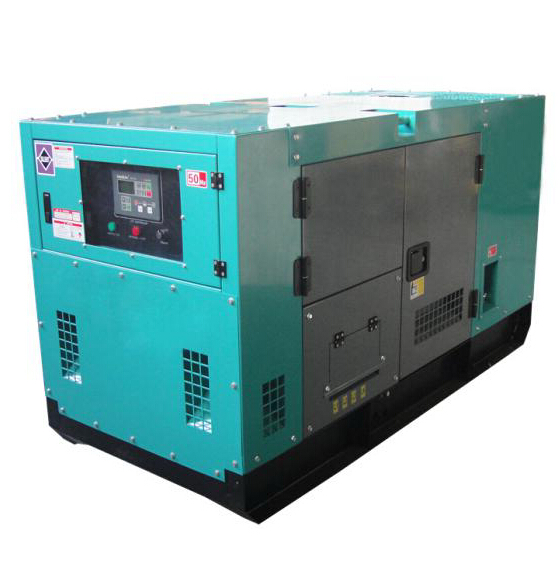

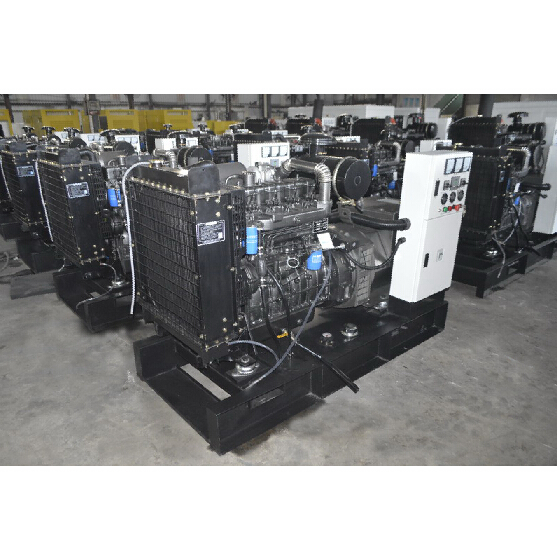

- Generator Type: Open Type and Silent Type
- Product description:
Product introduction
| Water Cooled WeiChai Series Diesel generator Set | ||||||||
| Genset Type |
380V, 50HZ, 1500rpm 3-Phase, PF=0.8 |
Engine Specification |
Alternator Model ( Stamford Copy) |
|||||
| Power (KVA) | Power (KW) | Fuel Con | Engine Model | CYL | ||||
| Prime | Standby | Prime | Standby | (L/H) | ||||
| FT-K8 | 10 | 11 | 8 | 8.8 | 2.58 | Y480BD | 4 | 168B 8KW |
| FT-K10 | 12.5 | 13.75 | 10 | 11 | 3.2 | Y480BD | 4 | 164C 10KW |
| FT-K12 | 15 | 16.5 | 12 | 13.2 | 4.1 | Y485BD | 4 | 164D 12KW |
| FT-K15 | 18 | 20 | 15 | 16.5 | 4.1 | Y485BD | 4 | 184E16KW |
| FT-K20 | 25 | 27.5 | 20 | 22 | 6.5 | 495DS | 4 | 184F 20KW |
| FT-K24 | 30 | 33 | 24 | 26.4 | 7.8 | K4100DS | 4 | 184G 25KW |
| FT-K30 | 37.5 | 41 | 30 | 33 | 9.8 | K4100ZDS | 4 | 184H 30KW |
| FT-K40 | 50 | 55 | 40 | 44 | 11.6 | N4105ZDS | 4 | 224D 40KW |
| FT-K50 | 62.5 | 68 | 50 | 55 | 14.5 | R4105ZLDS1 | 4 | 224E 50kw |
| FT-K68 | 85 | 93.5 | 68 | 75 | 19.8 | R6105ZDS1 | 6 | 224G 68KW |
| FT-K80 | 100 | 110 | 80 | 88 | 23.5 | R6105ZLDS1 | 6 | 274C 80KW |
| FT-K100 | 125 | 137.5 | 100 | 110 | 29 | R6105AZLDS1 | 6 | 274D 100KW |
| FT-K120 | 150 | 165 | 120 | 132 | 32 | R6105BZLDS1 | 6 | 274F 120KW |
| FT-K150 | 187.5 | 206 | 150 | 165 | 42 | R6110ZLDS | 6 | 274G 150KW |
| FT-K160 | 128 | 141 | 160 | 176 | 45.6 | 6126-68D | 6 | 274H 160KW |
