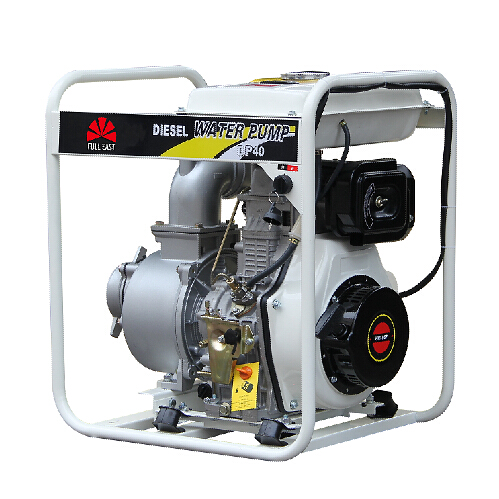

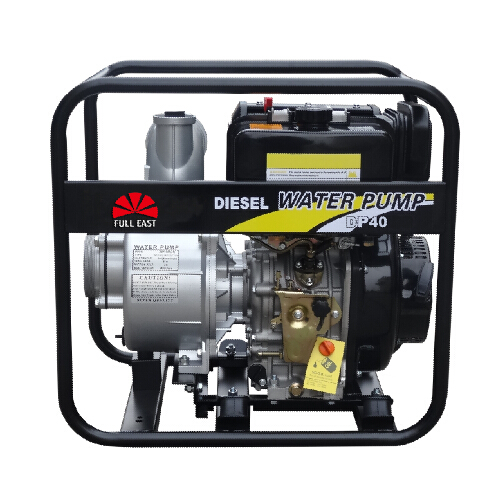

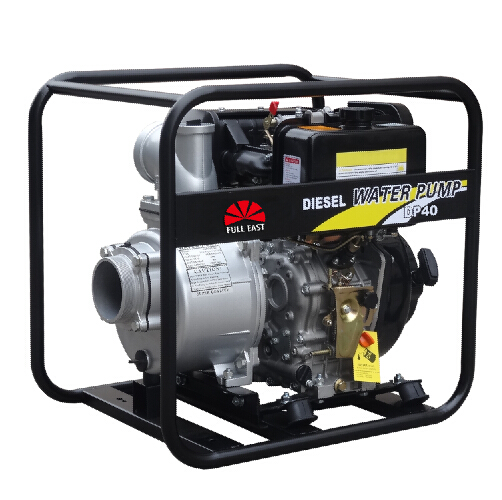

2inch,3inch,4inch Diesel Water pump
- Model: DP20,DP30,DP40
- Intet Size: 2inch,3inch,4inch
- Outlet Size: 2inch,3inch,4inch
- Product description: ♦ Featured by easy starting, simple operation, low fuel consumption, a longer service life, low pollution, etc
Product introduction
| Air cooled Diesel water pump | ||||
| Model | DP20(2inch) | DP30(3inch) | DP40(4inch) | |
| Water Pump | Intet and Outlet Size | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) |
| Max delivery Volume( m3/hr) | 36 | 50 | 96 | |
| Total Head (m) | 26 | 25 | 31 | |
| Sunction Head (m) | 8 | 8 | 8 | |
| Self-priming time (s/4m) | 70 | 120 | 180 | |
| Fuel Tank Capacity (L) | 2.5 | 3.5 | 5.5 | |
| Running Time under 50% Load (hr.) | 10 | 7.3 | 5.2 | |
| Noise Level at 7 Meters (dBA) | 75 | 75 | 77 | |
| Diesel Engine | Engine | 170F | 178F | 186FA |
| Diesel engine type | air cooled,4 stroke,single cylinder | |||
| Power Output (HP/RPM) | 4HP/3600 | 6HP/3600 | 10HP/3600 | |
| Start Method | Manual or Electric | |||
| Displacement (cc) | 211 | 296 | 418 | |
| Oil Capacity (L) | 0.75 | 1.1 | 1.65 | |
| Standard Features | Oil alert | yes | ||
| Connector of infall, Connecto of outfall | yes | |||
| Filter | yes | |||
| Seal ring | yes | |||
| Hoop | yes | |||
|
Other information |
N.W/G.W(KG) | 38/40 | 48/50 | 67/69 |
| Specification:(mm) | 520*475*610 | 570*485*665 | 665*480*725 | |
| packing: | CARTON | CARTON | CARTON | |
| Quantity for 20ft:(set) | 236SETS | 192SETS | 105SETS | |
