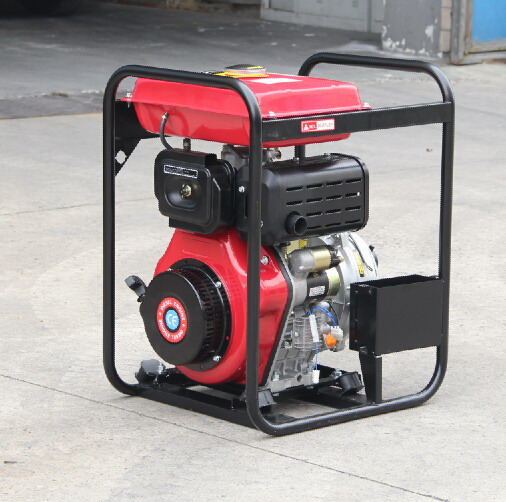

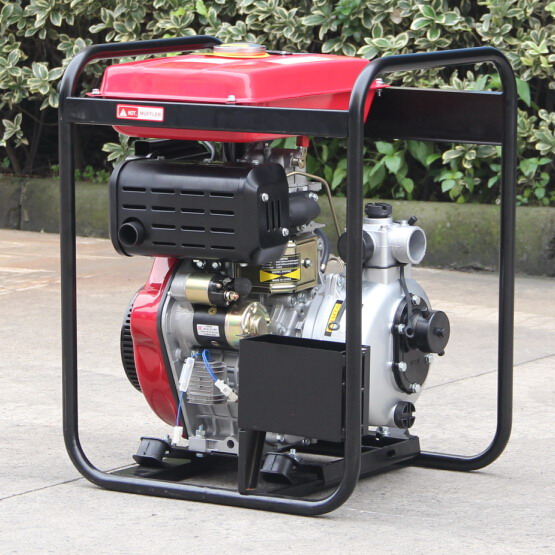

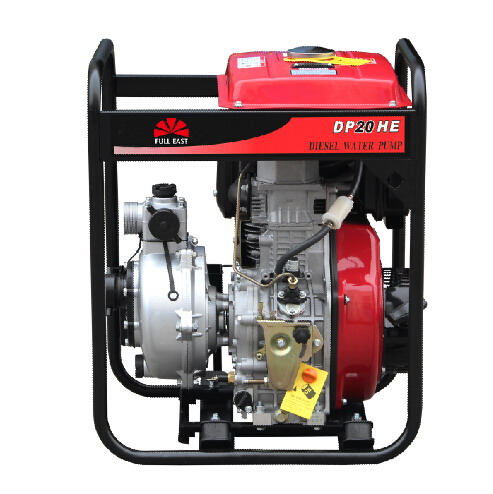

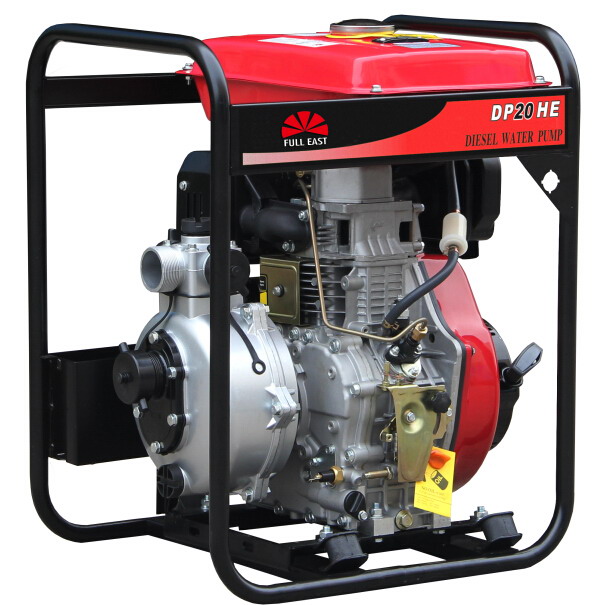

2inch High Pressure Fire Diesel Water Pump
- Model: DP20H
- Intet Size: 2 inch*1
- Outlet Size: 2 inch * 1 ,1.5 inch * 2
- Product description: ♦ It is with 186FA/10hp diesel engine, the total head can reach 77meter.
Product introduction
| High Pressure Fire Diesel water pump | ||
| Model | DP20H | |
| Water Pump | Pump Type | Centrifugal And Self Priming |
| Inlet | 2 inch*1 | |
| Outlet | 2 inch * 1 ,1.5 inch * 2 | |
| Capacity (m3 / hr) | 30m3 / hr | |
| Self-priming time (s / 4m) | 30 | |
| Suction head (m) | 8 | |
| Max discharge head (m) | 75m/7.5Bar | |
| Impeller number | double | |
| Diesel Engine | Engine | XD186FA |
| Bore×stroke (mm) | 86×72 | |
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |
| Max output (hp / rpm) | 10.0 / 3600 | |
| Displacement (cc) | 418 | |
| Starting system | Recoil or Electric | |
| Fuel tank capacity (L) | 12.5 | |
| Standard Features |
Connecter of infall, Connecter of outfall |
yes |
| Filter | yes | |
| Seal ring | yes | |
| Hoop | yes | |
| Dimension | Net weight (kg) | 69 |
| Dimensions (L*W*H)(mm) | 580×490×715 | |
