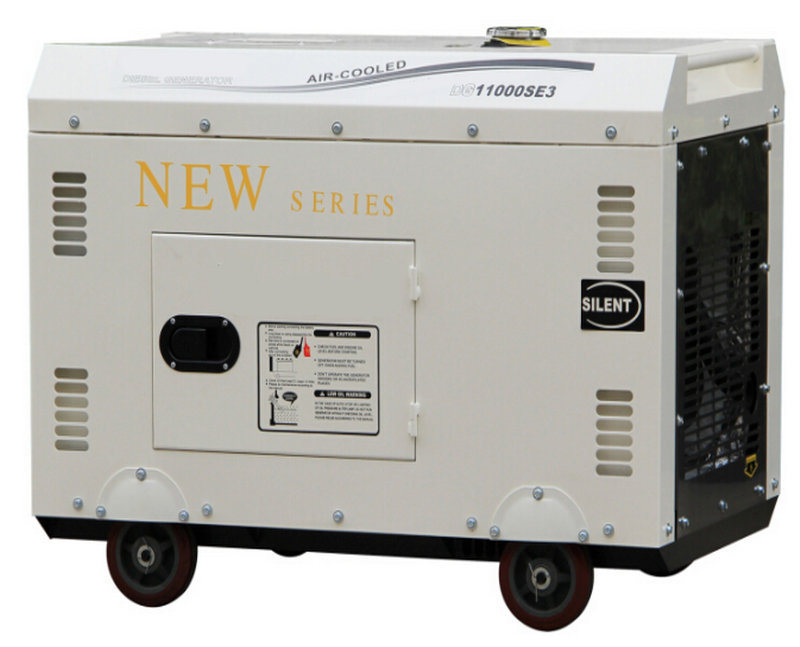

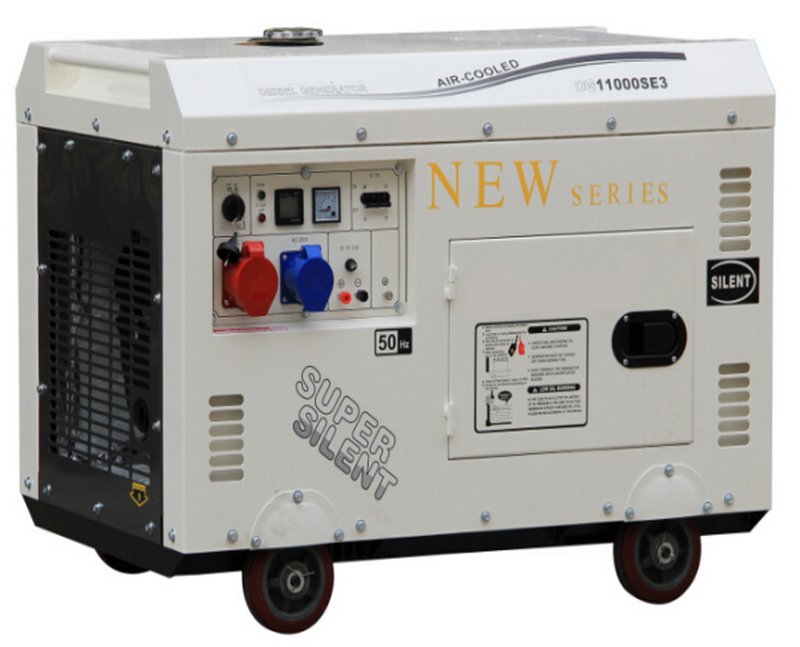

8kw Silent Diesel Generator
- Model: DG11000SE
- Generator Type: Silent Type
- Product description: ♦ Circuit breaker protects overload operation. ♦ Emergency low oil alert warn the low lube oil level.
Product introduction
| SILENT TYPE AIR COOLED DIESEL GENERATOR | ||
| Model | DG11000SE | |
| Generator | Frequency（HZ） | 50/60 |
| Max.output （kw） | 8 | |
| Rated output（kw) | 7.5 | |
| Rated.AC voltage（V） | 220,230,220/380,230/400 | |
| Power factor（cos￠） | 1 | |
| DC output (V) | 12V/8.3A | |
| Phase | Single phase | |
| Alternator type | Self-excited,2-pole, Single phase alternator | |
| Starting system | Electric | |
| noise level(at 7m) | 68-72 | |
| Fuel tank capacity（L） | 30 | |
| Continuous work (hr) | 12 | |
| Engine | Model | 198FA |
| Power Output (HP) | 15HP | |
| Engine type | single-cylinder, vertical,4-stroke air-cooled diesel engine | |
| Bore×stroke（mm) | 98×84 | |
| Displacement (cc) | 633 | |
| Fuel | 0# or -10# light diesel oil | |
| Lubrication oil volume(L) | 1.65 | |
| Combustion system | Direct Injection | |
| Standard feature | Voltmeter | yes |
| AC Output Socket | 2 | |
| Ac circuit breaker | yes | |
| Oil warning light | yes | |
| Oil alert | yes | |
| DC output (V) | yes | |
| AVR(auto voltage regulator) | yes | |
| Optional feature | Calculagraph | Optional |
| Digital Panel | Optional | |
| Three phase voltage | Optional | |
| Current meter | Optional | |
| ATS | Optional | |
| Remote control | Optional | |
| Welding | Optional | |
| Dimension | Dimension (L×W×H)(mm) | 1100×760×860 |
| Net weight (kg) | 230 | |
| 20FT | 30 | |
