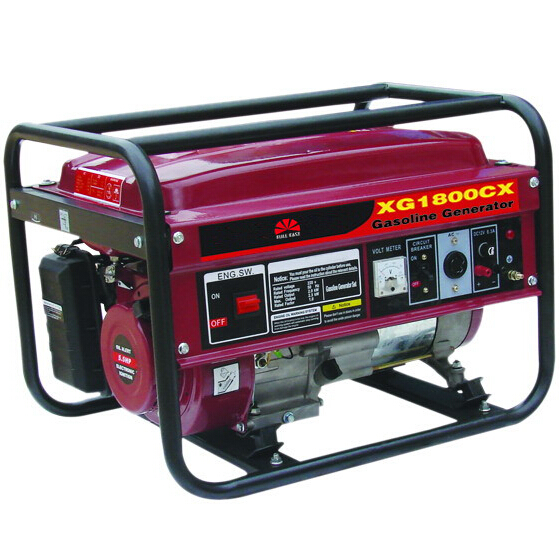

1.5kw Gasoline Generator
- Model: XG1800CX
- Generator Type: Open Type
- Product description: ♦ Stable voltage and frequency. ♦ Overload protection for safety operation.
Product introduction
| 4 stroke Air cooled gasoline generator | ||
| Model | XG1800CX | |
| Generator set | Frame Type | Open type |
| Rated output(KW) | 1.5KW | |
| Max output(KW) | 1.7KW | |
| Rated frequency(HZ) | 50/60 | |
| Rated voltage(V) | 110-240 | |
| Power factor | 1 | |
| Fuel tank capacity(L) | 15 | |
| Lube oil capacity(L) | 0.6 | |
| Phase | single | |
| Continuous working(H) | 12 | |
| Noise Level at 7m(dB) | 65dB | |
| Gasoline Engine | Gasoline Engine model | 170F |
| Gasoline engine type | air cooled,4 stroke,single cylinder | |
| Power Output (HP) | 7HP | |
| Compression ratio | 8.5:1 | |
| Bore*stroke(mm*mm) | 70*54 | |
| Ignition system | Non contact transistorize ignition(TCI) | |
| Lube oil system | Splash Type | |
| Displacement (cc) | 207 | |
| Other information | Voltmeter | yes |
| AC Output Socket | 2 | |
| Oil alert | yes | |
| AVR(auto voltage regulator) | yes | |
| AC Circuit Breaker | yes | |
| DC Output | yes | |
| N.W/G.W(KG) | 37/40 | |
| Specification:(mm) | 605*455*460 | |
| Packing | CARTON | |
| Quantity for 20ft:(set) | 239SETS | |
| Warranty time | One year | |
